FAQ
|

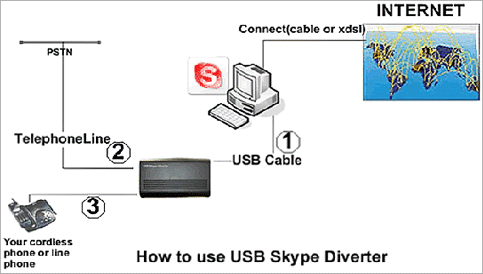

1.How USB Diverter can save your toll |
While you are out, the USB-B3K will forward all incoming skype calls to your mobile phone, and it¡¯ll forward your PSTN calls to skype, you can make calls to skype contacts and make calls to any phone all over the world via skypeout by your mobile phone. You can take advantage of skype and skypeout anywhere and anytime.

Feature 1: While you are out
- USB-B3K will forward all incoming skype calls to your mobile phone automatically (local PSTN phone fee).
- USB-B3K can forward incoming skype call to any phone if divert number is not setup (local PSTN phone fee).
- Forward the PSTN call to skype, you can make calls to skype contacts and make calls to any phone all over the world via skypeout by your mobile phone (local PSTN phone fee + skypeout fee).
Feature 2: While you are near PC
- Make/Receive both VoIP calls and regular PSTN calls
- Auto-detection and auto-switch to VoIP or PSTN calls
- Phone rings for all incoming VoIP and PSTN calls
- VoIP or PSTN calls selected by phone key (*)
- Dial using the phone keypads
- PC-to-PC, PC-to-phone, Phone to Phone operation
Hardware
- No external power required
- USB and PSTN line LED indicator
- Driver and sound card built-in
Interface
- 1 USB interface to PC
- 1 FXS for regular phone
- 1 FXO for PSTN call relays
- Relay Deactivated on Power Fail
System requirement
- Windows 2000 or XP
- 400 MHz processor and free USB1.1 or USB2.0 port
- 128 MB RAM and 15 MB free disk space
- Internet Connection (33.6 Kbps modem, or any broadband: cable, ADSL.)
|
2. How USB Skype PHONE work. |
USB Skype PHONE FOR SKYPETM |
With dot-matrix graphic LCD and back light, any language character can be displayed. Plug into your computer¡¯s USB port, you can review the skype contacts and make/receive skype calls on phone. Phone rings for all incoming calls, dial Skype contacts and SkypeOut numbers from the phone. With keypad, ringer and headset jack, easy to Use just as mobile phone. |
 |
Feature
- Dot-matrix graphic LCD, backlight
- Dial skype contacts (speed dial number) and SkypeOut number by phone keypads
- With ear-phone socket, easy to free your hands
- Phone rings for all incoming calls, ring style selectable by phone keys
- Caller ID function for skype calls, support multi-language display.
- Easy to review skype contacts and call list on LCD
- Echo cancellation, noise reduction, full dulplex communication
Hardware
- No external power required
- Driver and sound card built-in
Interface
- one USB interface to PC
- one Headset jack
System requirement
- Windows 2000 or XP
- 400 MHz processor and free USB1.1 or USB2.0 port
- 128 MB RAM and 15 MB free disk space
- Internet Connection (33.6 Kbps modem, or any broadband: cable, ADSL.)
|
|
3. Skype USB Wireless Phone |
The USB-W1D is a wireless Skype phone which is composed of one base and one handset. The base is built-in one high quality speakerphone, ideal for conference calls. The handset has graphic LCD with blue color backlight. User can review Skype contacts and call list on handset LCD. User can make/receive a call via the handset without the limitation of USB cable, just like using a mobile.

Feature
- 2.4G ISM Band (2400~2483MHz), suit for Europe, USA, Japan etc.
- Commercial grade high quality speakerphone with digital echo cancellation
- Large graphic LCD with blue color backlight
- Multi-language caller ID display feature
- Review Skype contacts and call list on handset LCD
- Both base and handset ring for all incoming calls.
- Auto-select RF channel to improve the quality of voice
Hardware
- Radio range: 10 meters ( 32ft )
- Standby time: More than 100 hours
- Talk time: More than 10 hours
- 1
Battery: 250mAh (Li-battery)
- No external power required
- Driver and sound card built-in
Interface
- one base with USB interface to PC
- one handset with headset jack
System requirement
- Windows 2000 or XP
- 400 MHz processor and free USB1.1 or USB2.0 port
- 128 MB RAM and 15 MB free disk space
- Internet Connection ( any broadband: cable, ADSL.)
|

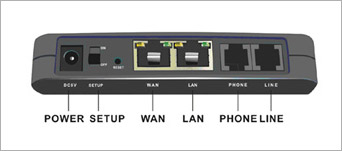

4.SIP-GW2 SIP ANALOG TELEPHONE adaptor |
SIP-GW2 is analog telephone adaptor with SIP protocol, one WAN interface to internet, one LAN interface to PC, 1 FXS for regular phone, 1 FXO for PSTN call relays. All cordless phones and regular phones can be used to make and receive VoIP call. Phone can be used to make regular call at the same time. Phone rings for all incoming VoIP and PSTN calls, VoIP or PSTN calls selected by phone key (**).


Feature
- Make/Receive both VoIP calls and regular PSTN calls
- Auto-detection and auto-switch to VoIP or PSTN calls
- Phone rings for all incoming VoIP and PSTN calls
- VoIP or PSTN calls selected by phone key (**)
- Supports SIP 2.0(RFC 3261), PPPoE, STUN, DHCP(both client and server) etc.
- Built-in router, NAT, gateway, LAN pass and DMZ port forwarding.
- Support various voice codec including G.711U, G.711A, G.729A.
- Support Caller ID/Name display or block.
- Support call hold, call waiting, call forwarding, and call transfer
- Support in-band and out-of-band DTMF transfer.
- Dial plans, dial tone ,busy tone, ring back tone, alert tone can be set flexible.
- Support silence suppression, VAD, CNG, line echo cancellation (G.168), AGC, and QoS.
- Support standard encryption and authentication (DIGEST using MD5 and MD5-sess).
- Support automated NAT traversal without manual manipulation of firewall/NAT.
- Support firmware upgrade via TFTP, FTP and HTTP.

Model |
SIP-GW2 |
LAN interface |
1 X RJ45 10/100M Base-T |
WAN interface |
1 X RJ45 10/100M Base-T |
FXS telephone port |
1FXS |
FXO PSTN port |
1FXO |
LED |
Status, PSTN,SIP |
Universal Switching Power Adaptor |
Input: 100-240VAC 50-60 Hz Output: +5VDC, 1200mA |
|
|
|
|
